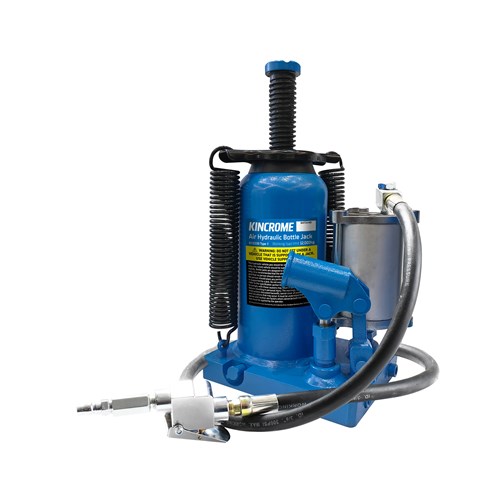

KINCROME Air/Hydraulic Bottle Jack 12,000kg
Related products
-
Automotive Lifting & WorkshopITM Bottle Jack Air Hydraulic
ITM Air/Hydraulic bottle jacks are specifically designed for commercial use and can be operated either manually or pneumatically and comply with the Australian Mandatory Standard AS/NZS 2693:2007. A high quality aluminium air pump allows fast and efficient lift when in the workshop, the manual function allows for normal operation anywhere when air supply is not available making them perfect for onsite/offsite lifting of heavy duty machinery, farm equipment and industrial construction equipment. Constructed from heavy duty billet steel, these dual mode bottle jacks and ideal for lifting farm vehicles, heavy-duty machinery, industrial construction equipment and more. Fitted with polyurethane seals and a fully chromed and polished cylinder and piston, long life and reliable performance are guaranteed
- Twon style operation: Air and hydraulic (includes handle for hydraulic operation)
- Polyurethane seals – last up to 10 times longer than traditional rubber seals
- Billet steel base and welded construction for extra strength and durability
- Fully chromed and polished cylinder and piston
- 2 Speed action – slow down under load
- Complies with mandatory Australian standard: AS/NZS 2693:2007
(0 reviews)Add to Quote This product has multiple variants. The options may be chosen on the product page -
Bottle JacksTQB BRANDS Bottle Jack 15,000kg
This powerful, heavy-duty TradeQuip Hydraulic Bottle Jack with high quality glide-action pressure pump is designed for hard-hitting commercial use, making large loads easy to lift. The lightweight jack is ideal for lifting farm vehicles, heavy-duty machinery, industrial construction equipment and more. High quality, fitted with unique overload protection system and large stable base. Supplied with 500mm pump handle.
Fitted with a safety overload valve for extra protection, the safety valve is installed between the pump and high-pressure check valve in the barrel/lift ram assembly. When attempting to raise a load greater than the jack’s capacity, the safety valve opens on each pump stroke and diverts any further oil back to the reservoir thus preventing the raising of the load.
Features:
- Machined and polished cylinders with die-cut threads provide non-abrasive leak-free, durable performance
- Fabricated from hard-cast steel with heat-treated critical stress areas
- Unique cross-type forged release valve assures positive load control
- Overload protection
- Hydraulic system is protected from internal damage by a by-pass mechanism
- Meets ASNZS2693:1993 safety standards
Specifications
- Safe Working Capacity: 15,000kg
- Hydraulic Lift: 150mm
- Adjustable Screw Height: 60mm
- Minimum Height: 230mm
- Maximum Height: 440mm
- Base Area: 148 x 136mm
- Handle: 500 x 20mm
- Carton: 160 x 145 x 235mm (plus handle)
- Gross Weight: 9kg
IMPORTANT: NEVER get beneath a vehicle that is only supported by a jack. ALWAYS chock the vehicle wheels and use support stands.
Intended Use
For heavy duty use on truck, agriculture, construction, mining, automotive, and marine applications where lifting and lowering is required.
(0 reviews) -
Bottle JacksTQB BRANDS Bottle Jack Air/Hydraulic 12,000kg
This TradeQuip “Made for the Trade” Air/ Hydraulic Bottle Jack is designed to operate pneumatically. The power of air makes it easy to lift farm vehicles, trucks, lawn mowers, heavy duty machinery, industrial construction equipment and more. With it’s low profile design this 12,000kg heavy-duty air/hydraulic bottle jack is the perfect choice for a wide variety of uses. Use this workhorse with a 110-125 PSI rated air pressure supply to lighten the load and provide the fast, strong lifting power you need. The 260–510mm lift range raises the load to the desired height and a knurled, heat-treated pad with screw height adjustment allows fine-tune of the jack from there.
Fitted with a safety overload valve for extra protection, the safety valve is installed between the pump and high-pressure check valve in the barrel/lift ram assembly. When attempting to raise a load greater than the jack’s capacity, the safety valve opens on each pump stroke and diverts any further oil back to the reservoir thus preventing the raising of the load.
Features:
- Machined and polished cylinders with die-cut threads
- Fabricated from hard-cast steel with heat-treated critical stress areas
- Unique cross-type forged release valve assures positive load control
- Built-in bypass protection prevents damage from over pumping
- Compact yet powerful Air Turbo motor
- Versatile “quick connector provides ‘quick & easy air connection
- Two piece pump handle
- Convenient welded carry handle
Specifications:
- Safe Working Capacity: 12,000kg
- Minimum Height: 260mm
- Maximum Height: 510mm
- Hydraulic Stroke: 170mm
- Screw Extension Height: 80mm
- Operating Air Pressure: 110-125psi
- Air Fitting: 1/4″
- Carton: 250x180x270mm
- Gross Weight: 12.75kg
IMPORTANT: NEVER get beneath a vehicle that is only supported by a jack. ALWAYS chock the vehicle wheels and use support stands.
Intended Use
For heavy duty use on truck, agriculture, construction, mining, automotive, and marine applications where lifting and lowering is required.
(0 reviews)
