KINCROME Hydraulic Bottle Jack 10,000kg
Related products
-
Automotive Lifting & WorkshopITM Bottle Jack Hydraulic
ITM bottle jacks are ideal for any home garage or professional workshop and are designed to comply with the Australian Mandatory Standard AS/NZS 2693:2007. Constructed from heavy duty billet steel, these lightweight jacks are ideal for lifting farm vehicles, heavy-duty machinery, industrial construction equipment and more. A fully chromed and polished bore and piston ensures a smooth and easy lift everytime and high performance seals provide leak-free, durable performance
- Fully welded design to eliminate leaks
- Billet steel base and welded construction for extra strength and durability
- Suited for use in the professional trade workshop
- Fully chromed and polished cylinder and piston
- Fitted with high performance seals
- Complies with mandatory Australian standard: AS/NZS 2693:2007
(0 reviews)Add to Quote This product has multiple variants. The options may be chosen on the product page -

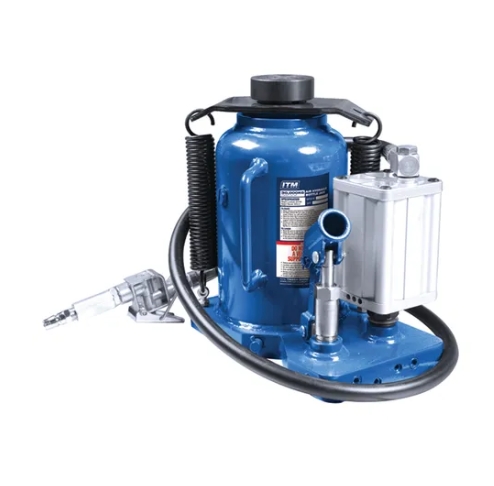

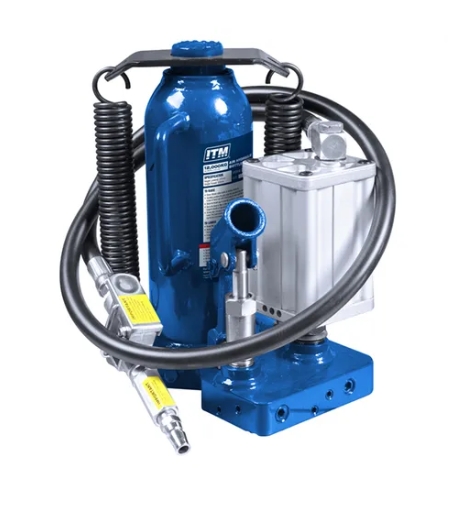

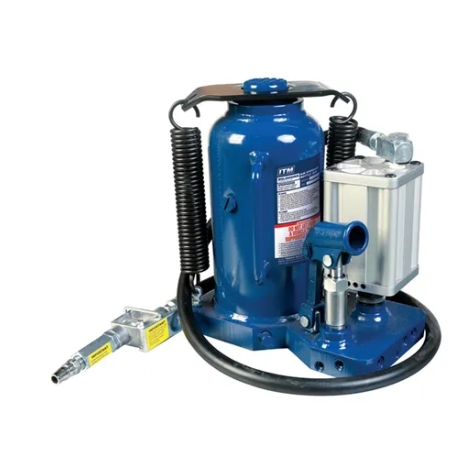

Bottle JacksTQB BRANDS Bottle Jack Air/Hydraulic 20,000kg
Our TradeQuip “Made for the Trade” Air/Manual 20,000kg Bottle Jack is designed to operate either manually or pneumatically. The manual function allows for normal operation anywhere, even without an air supply. Ideal for onsite/offsite lifting of farm vehicles, heavy duty machinery, industrial construction equipment and more. The Air/Manual Bottle Jack is equipped with an hydraulic system and a mounted powerful manual pump. Used on light or heavy vehicles, they are compact, versatile and safe to use. Our TradeQuip “Made for the Trade” design includes a quality safety valve to prevent overloading and a larger base to provide high safety and greater stability. This Air/Manual Bottle Jack is fitted with a Professional Quality Air Turbo Motor designed to meet the demands of adverse climate conditions and extreme temperatures. This ‘Best Selling’ Jack is a favourite of the Qld and WA mine maintenance crews, due to it’s strong lifting power and long lasting wear characteristics.
This 20,000kg heavy-duty air/hydraulic bottle jack is the perfect choice for a wide variety of uses. The power of air makes it easy to lift farm vehicles, trucks, trailers, heavy equipment and other large loads! Use this workhorse with a 90-120 PSI rated air pressure supply to lighten the load and provide the fast, strong lifting power you need, or operate it manually for normal operation just about anywhere. The 265–430mm lift range raises the load to the desired height and a knurled, heat-treated pad with 100mm screw height adjustment allows you to fine-tune the jack from there.
Fitted with a safety overload valve for extra protection, the safety valve is installed between the pump and high-pressure check valve in the barrel/lift ram assembly. When attempting to raise a load greater than the jack’s capacity, the safety valve opens on each pump stroke and diverts any further oil back to the reservoir thus preventing the raising of the load.
Always consider the TradeQuip Air Turbo Motor Features:
- Best practise quality controlled manufacturing process
- CNC machined cast alloy piston and barrel
- Barrel is hardness rated opposed to other mild steel variations
- Piston & Barrel combination present longlife wear characteristics similar to an engine crank and bearing
- Duro70 rated nitrile O’rings (best for air tool applications) provide good elasticity and friction rating
- Results in longer duty cycle over adverse Australian climate and temperature ranges
- Superior lithium grease lubrication is less prone to drying or flushing out from wet ,dry, hot or cold air supplies
- Lithium grease re-emulsifies when a few drops of air tool oil or 32 grade hydraulic oil is regularly added
Specifications
- Safe Working Capacity: 20,000kg
- Minimum Height: 265mm
- Maximum Height: 510mm
- Hydraulic Lift: 170mm (265mm to 435mm)
- Adjustable Height: 75mmn (Maximum height 510mm)
- Base Area: 224x134mm
- Work Pressure: 90-120psi
- Carton: 290 x 200 x 290mm
- Weight: 16kg
IMPORTANT: NEVER get beneath a vehicle that is only supported by a jack. ALWAYS chock the vehicle wheels and use support stands.
Intended Use
For heavy duty use on truck, agriculture, construction, mining, automotive, and marine applications where lifting and lowering is required.
(0 reviews) -
Bottle JacksTQB BRANDS Industrial Squat Bottle Jack – 20,000kg
This powerful, heavy-duty Borum Industrial Hydraulic Bottle Jack with high quality glide-action pressure pump is designed for hard-hitting commercial use, making large loads easy to lift. The lightweight jack is ideal for lifting farm vehicles, heavy-duty machinery, industrial construction equipment and more. High quality, fitted with unique overload protection system and large stable base, this unit is ideal for daily use in a demanding environment.
Fitted with a safety overload valve for extra protection, the safety valve is installed between the pump and high-pressure check valve in the barrel/lift ram assembly. When attempting to raise a load greater than the jack’s capacity, the safety valve opens on each pump stroke and diverts any further oil back to the reservoir thus preventing the raising of the load.
The Borum BR02 series Bottle Jacks can be used horizontally when the pump is positioned above the ram housing or lying on their side with the pump positioned as per the illustrations below. Refer to the owners manual for more information.
Features
- Machined and polished cylinders with die-cut threads provide non-abrasive leak-free, durable performance
- Fabricated from hard-cast steel with heat-treated critical stress areas
- Specially designed internal hydraulics allow the jack to be operated vertically & horizontally
- Unique cross-type forged release valve assures positive load control
- Overload protection built into the hydraulic system ensures user safety
- 3-piece galvanised steel handle allows for easy & compact storage
Specifications
- Safe Working Capacity: 20,000kg
- Minimum Height: 183mm
- Maximum Height: 305mm
- Handle: 3-piece galvanised steel
- Carton: 231L x 182W x 294H mm
- Gross Weight: 9.2kg
IMPORTANT: NEVER get beneath a vehicle that is only supported by a jack. ALWAYS chock the vehicle wheels and use support stands.
Intended Use
For heavy duty use on truck, agriculture, construction, mining, automotive, and marine applications where lifting and lowering is required.
(0 reviews)
