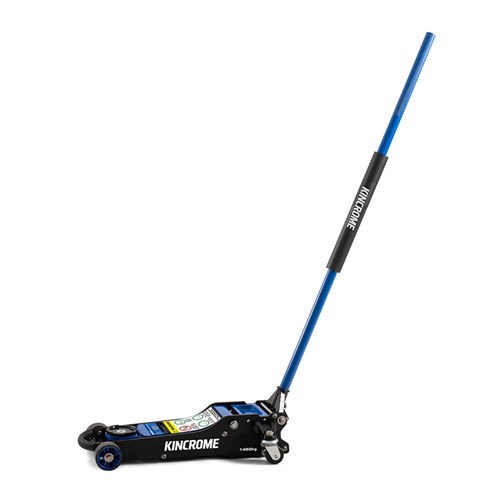

KINCROME Aluminium Body Racing Jack – Rapid Lift 1,450kg
Related products
-
Garage JacksTQB BRANDS Truck Jack Air Actuated Single Stage 30,000kg
The BORUM “Industrial Quality” Commercial Jacks are made to TQB Brands specification using quality components that are built to exacting standards through CNC machining and Robotic Welding. The result is top industrial performance and reliability. BORUM “Industrial Quality” Commercial Jacks are the perfect choice for a wide variety of uses. These Commercial Jacks are carefully constructed from the highest grades of rugged steel. The super strong hydraulic pump utilises wear-resistant American Made XTP double sealing ring technology. Only the finest quality of Hydraulic Oil is used that has been tested from -25°C – 60°C.
Use these workhorses with a 145–175psi rated air pressure supply to lighten the load and provide the fast, strong lifting power you need. With several lifting options as well as included saddle adaptors…the wide range of BORUM Commercial Jacks will suit most desired applications from agriculture to mining, earth-moving to passenger transport as well as aviation and military.
The BTJ30TA quickly and easily manages a hefty 30,000kg. This Air Actuated Commercial Jack is designed for heavy duty commercial use and features a long reach “T” handle and large rubber wheels for smooth manoeuvring around the workshop. As always with BORUM, safety is just as important as industrial standard quality, so all BORUM Truck Jacks have a built-in safety valve to prevent overloading and keep the operator safe. Additional safety feature includes a Self-Return lowering and lifting switch to ensure complete control during operation. With a minimum height of 360mm this jack is ideal for high axle vehicles and a high lift maximum of 772mm (includes additional lifting saddles), this BORUM Air Actuated Jack is a very versatile heavy-lifter suitable for most workshops.
Features
- Seals made in America
- Double Sealing Function using XTP Industry Sealing
- Telescopic air actuation lift (air-hydraulic pump)
- Long T-handle lets you easily position your jack under vehicle
- Self-Returning Lowering and Lifting Switch
- Internal and External Cylinders hard chromed
- High manoeuvrability & deep reach under vehicles
- Designed for extremely high axles
- 2 extension adaptors / saddle plates
- Large rubber wheels
- All adaptors can be properly stored for transport on each side of the jack
Specifications
- Safe Working Capacity: 30,000kg
- Lift Range: 360 – 772mm
- Hydraulic Lift: 267mm
- Adaptors: 45mm and 100mm
- Handle Length: 1370mm
- Operating Air Pressure: 145-175psi
- Chassis: 840(L)x360(H)x282(W)mm
- Nett Weight: 86kg
- Crate: 925x320x450mm
- Gross Weight: 103kg
- Handle Carton: 1390x280x110mm
- Handle Carton Weight: 9kg
Intended Use
For professional heavy duty use on truck, agriculture, construction, mining, automotive, and marine applications where lifting and lowering is required.
(0 reviews) -
Garage JacksTQB BRANDS Air Jack/Support Stand 10,000kg
This Borum “Industrial Quality” heavy-duty 10,000kg Air Jack/Support Stand runs entirely on compressed air. Air acts straight onto the piston to raise the load, and you control it with a simple UP/DOWN air valve. It’s a reinforced pin-style jack and stand built to take heavy loads up to 10,000kg, which makes it ideal for serviciing trucks, buses, farm gear and earthmoving equipment. It adjusts to suit the job, with a 444mm minimum height (536mm once the locking pins are in), 292mm of lift, and up to 1298mm using the extension tube.
To reach the full 10,000kg it needs a 200psi air supply. Anything less lifts a lighter load.
It’s built from high-grade steel and runs a sealed piston-and-cylinder setup. The piston and ram are hardened, treated and polished, so they stand up to heavy, repeat use.
Once it’s up at the right height, the load locks onto the steel pins, so it isn’t sitting on air pressure alone. The manual is firm on this: pin the post and exhaust the air before anyone works on, under or around the load. A safety valve and an exhaust silencer are built into the air circuit.
The whole unit is built for hard industrial use. A rugged steel frame is finished in lead-free paint across every surface to handle long-term wear and help keep rust at bay. That finish also shrugs off oil, grease and dirt, so it wipes clean in seconds.
Built with the best components from the highest grades of rugged steel, to the wear-resistant advanced technology sealing rings and a heavy duty hydraulic pump that’s filled with industrial grade high/low temperature-resistant hydraulic oil.
Features:
- Runs entirely on compressed air, acting straight onto the piston
- Simple UP/DOWN air valve to raise and lower
- Full 10,000kg lift needs a 200psi air supply; lower pressure lifts less
- Doubles as a pin-style support stand, so the load locks onto the pins
- Reinforced industrial design with support bracing
- Solid heavy-duty steel construction
- Hardened piston and ram, treated and polished
- Sealing rings on the piston and cylinder
- Built-in safety valve
- Exhaust silencer
- Height adjusts on locking pins, with an extension tube and height adaptors
- Lead-free paint to resist wear and help prevent rust
- Oil, grease and dirt resistant finish that wipes clean
Specifications:
- Safe Working Capacity: 10,000kg
- Minimum Height: 444mm
- Minimum Height With Locking Pins In Place: 536mm
- Maximum Height: 1298mm
- Hydraulic Lift: 292mm
- Base Diameter: 339mm
- Saddle Dimensions (ID): 100L x 100W x 29H mm
- Air Supply Pressure: 200psi (Required for full 10,000kg; lower pressure lifts less)
- Nett Weight: 79kg
- Crate: 640(L) x 390(W) x 590(H)mm
- Gross Weight: 91kg
Intended Use
Made for professional heavy-duty work across trucks, buses, agricultural, earthmoving, mining, rail and fleet maintenance. Anywhere you need to lift, support and lower big loads.
(0 reviews) -
Garage JacksTQB BRANDS Truck Jack Air Actuated 2-Stage 40,000kg
This “Borum Industrial” pneumatic heavy-duty Air Hydraulic Truck Jack has a powerful air motor to lift heavy loads. The efficient quick lift system is designed to easily manage 40,000kg in the first stage lift position and 20,000kg at the higher 2nd stage extension.. The compact design easily fits between dual tandem axles. Ideal for lifting axles, farm vehicles, heavy-duty machinery, industrial equipment and more. This Borum Air/Hydraulic Truck Jack utilises compressed air to activate a booster cylinder, to move hydraulic oil within the cylinder up & down. It adopts an industrial hydraulic design combination of compressed air and hydraulic pressure, to create, strong jacking capacity and low lifting clearance in one jack. The two wheel floor support design lets you really get under your loads with a 150mm minimum height. Designed to lift buses and other large, low-clearance vehicles with maximum stability. Includes height adaptors.
Features:
- Professional quality rugged steel construction
- Wear-resistant quality sealing O-rings
- Strong hydraulic pump
- Temperature-resistant hydraulic oil
- Treated and polished piston and ram
- Built-in bypass hydraulic safety overload system
- Quick Lift lifting ram comes in contact with the load faster
- Convenient & efficient height adaptors
- 3-position pumping handle
- High quality lead-free paint ensures long-lasting wear and prevents rust
- Oil, grease and dirt-resistant finish for easy cleanup
- Conveniently placed & easy to use raise and lower control valve mechanism on jack handle
Specifications:
- 1st Stage: 40,000kg Safe Working Capacity
- 2nd Stage: 20,000kg Safe Working Capacity
- Lift Range: 150-295mm (no adaptors)
- 1st Stage Hydraulic Lift: 77mm
- 2nd Stage Hydraulic Lift: 68mm
- Adaptors: 10, 35, 65mm
- Operating Air Pressure: 100-145psi
- Handle Length: 1290mm
- Chassis: 543(L) x 291(W)mm
- Nett Weight: 42kg
- Carton 1: 600 x 340 x 190mm
- Carton 2: 1320 x 340 x 90mm
- Gross Weight: 45kg
Intended Use
For professional heavy duty use on truck, agriculture, construction, mining, automotive, and marine applications where lifting and lowering is required.
(0 reviews)
